Item Sales Info
Part Number: P5643-20-30K
/
Vendor ID Number: 149
/
Custom:
![6" LED Square Outdoor Wall Mount Fixture](/vendors/149/large/p5643_20-30k.jpg "6" LED Square Outdoor Wall Mount Fixture")

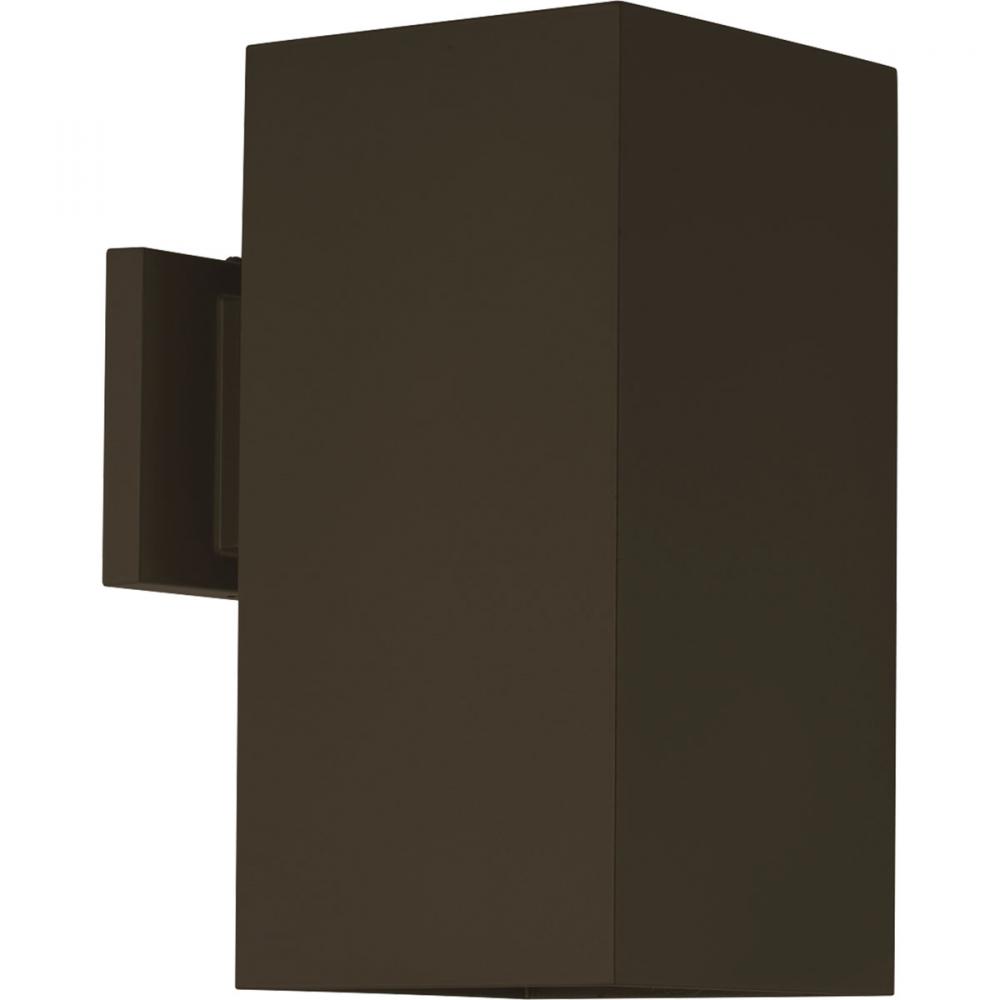

6" LED Square Outdoor Wall Mount Fixture
320
00
Pack Of: 1
28 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification

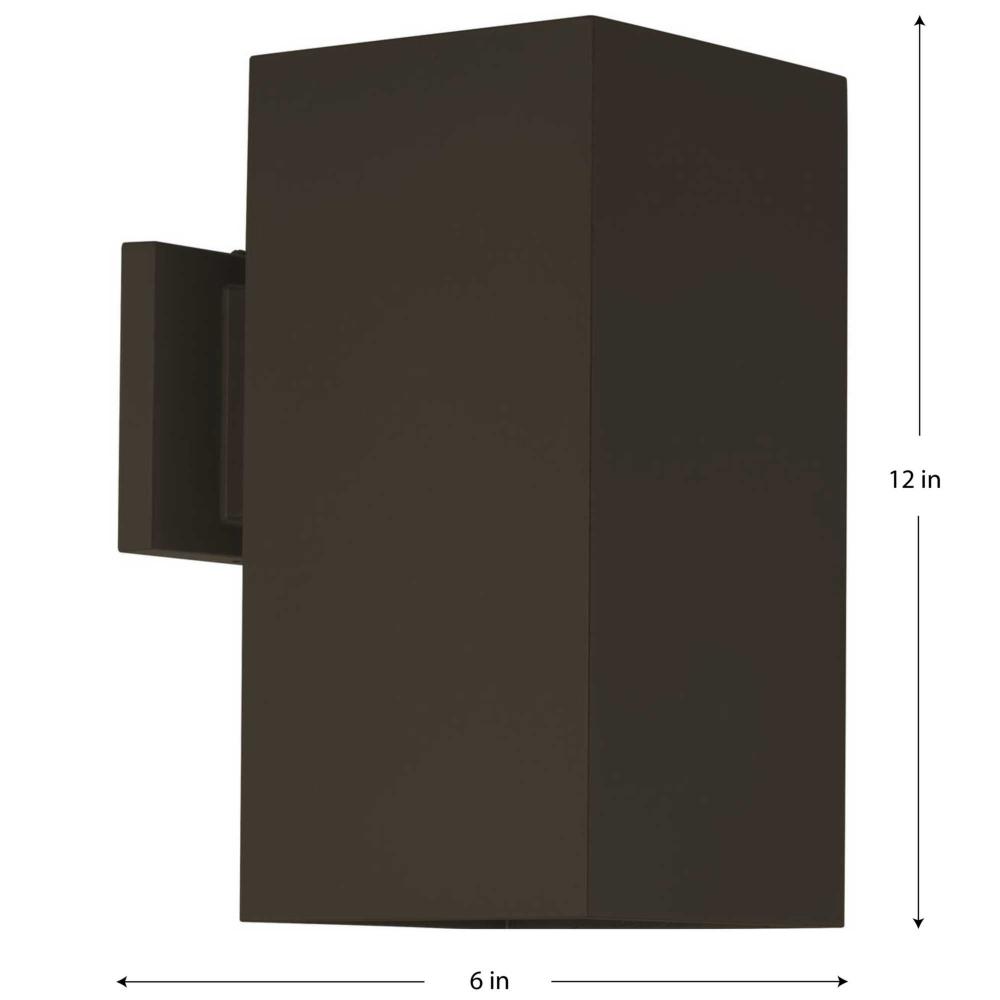

Dimensions
Height: 12.00"
Width: 8.88"
Length: 6.00"
Product Overview
6" LED Square Cylinder with heavy-duty aluminum construction, die-cast aluminum wall bracket. UL listed for wet locations. Powder coat for chipping and fading resistance. Dark Sky compliant for down light only. The P5643 is ideal for indoor/outdoor applications. It can be used in residential or light commercial installations. Antique Bronze finish.
Product Availability
-
Item appears to be in stock and ready to ship
Included Items
Info & Guides
Technical Details
Details
Category:
Exterior
Subcategory:
Wall Lanterns
Finish:
Bronze /vendors/vendorImages bronze.jpg
Style:
Contemporary
Transitional
Option:
Dark Sky
Energy Efficient
Energy Star /vendors/vendorImages energy star.jpg
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Outdoor
Wet Rated
LED
Title 20
Mount Type:
Flush Mount
Location Rating:
Wet Rated
Category:
Outdoor
Finish:
Antique Bronze
Style:
Modern;Transitional
Option:
Dark Sky
Energy Efficient
Title 20
Title 24
Wet Rated
Family:
LED Sq Cylinder
Voltage:
120
Number of Bulbs:
1 Bulbs
Bulb Hours:
60000
Bulb Type:
LED
Height To Center of Outlet:
7.50
Introduction Date:
01/16/2017
Kelvin:
3000
Keyword(s):
flush mount;ceiling fixture;ceiling light;led light;energy efficient
Length:
6.00
Lumens / Light Output:
1800
Material:
Die-Cast Aluminum
Ship Carton Height:
14.96
Ship Carton Length:
11.80
Ship Carton Width:
9.06
Ship Weight:
6.53
Special Features:
Antique Bronze finish.;Ideal for a wide variety of interior and exterior applications.;Die-cast aluminum construction with durable powder coated finish;3731 lumens 61.8 lumens/watt per module (delivered);3000K color temperature, 90+ CRI;Dimmable to 10% wit
Vendor Ship Method:
Non UPS Shippable False
Warranty:
5-year Limited
Weight:
6.43
Wire Included:
6 in
Americans with Disabilities Act:
No
Bulb CRI:
90 CRI
Bulb Included:
Yes
Can be Mounted Up or Down:
No
Canopy Shape:
Square
Certified Listed Location:
Wet Location Listed
Construction Material Main Part:
Construction
Convertible Fixture Includes Both Mounts:
FALSE
Country of Origin:
CN
Dark Sky:
Yes, per photometry (not registered with IDA)
Design Series:
No
Dimming Compatability:
Lutron_Diva DVELV-300P;Lutron_Nova_T NTELV-300;Lutron_Maestro MAELV-600
Dimming Protocol:
ELV/Reverse Phase
Dimming Range:
10%
Energy Efficient:
Yes
Energy Star:
No
Finish Type:
Painted
Frequency Rating:
60 Hz
Grounded Convenience Outlet included:
No
JA8:
No
Lamp Type Actual:
LED
Lamp Type Basic:
Solid State
Lamp Wattage:
29
Lumens per Watt:
60.00
Mount Location:
Wall
MTO:
No
Operating Temperature Celcius Max:
30 °C
Prop 65:
View
Prop 65 Description:
View
Room Type:
Outdoor
Safety Rating:
cULus
Starting Temperature Minimum:
-30 °C
Sub Brand:
Progress LED
Title 20:
Yes
Title 24:
Yes
Weight of Fixture Exceeds NEC Limits:
No
Width Diameter:
6 in Depth
