Part Number: S11556
/
Vendor ID Number: 27
/
Custom:

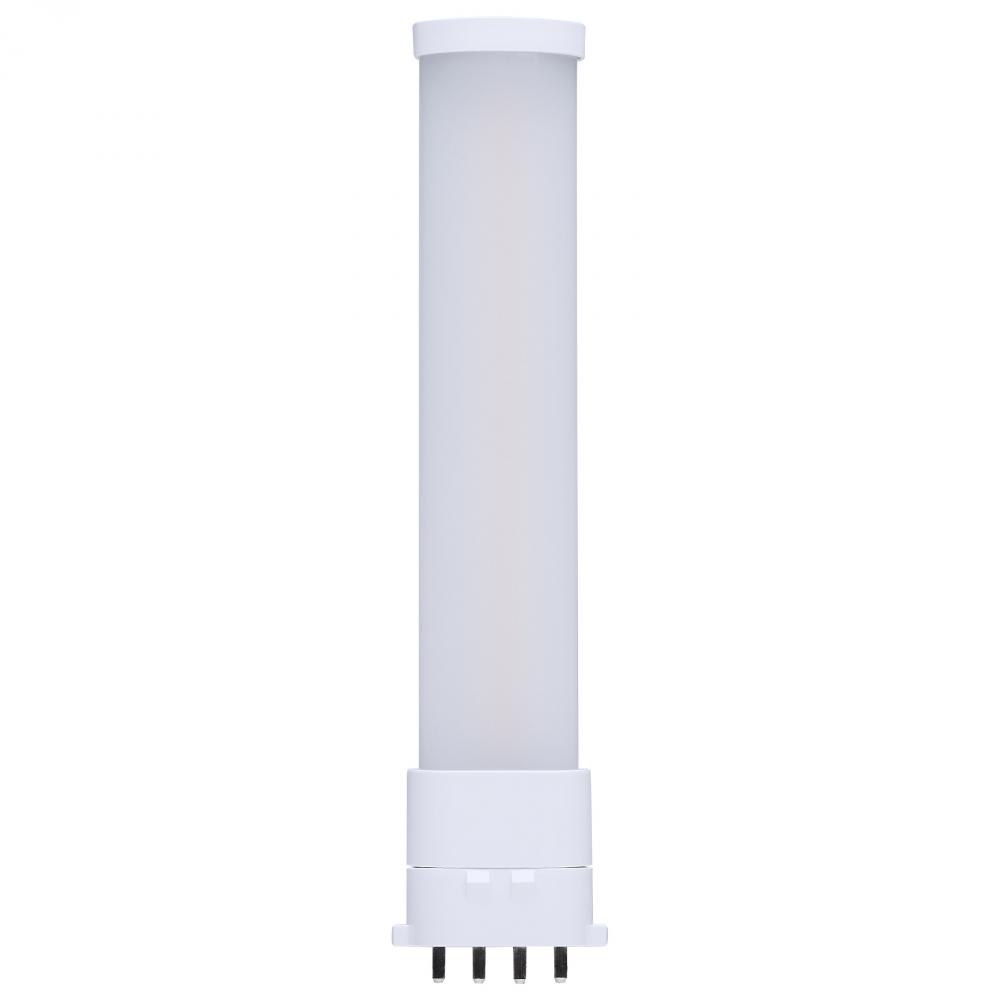

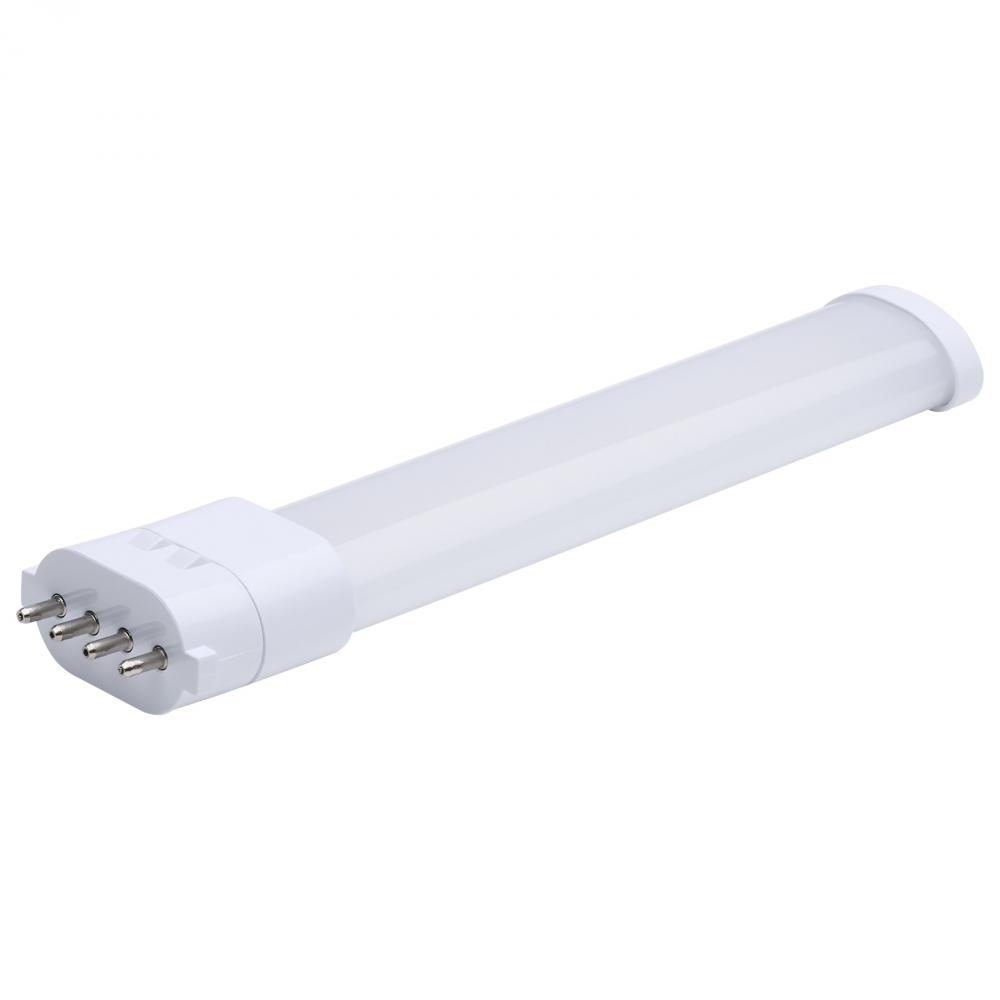

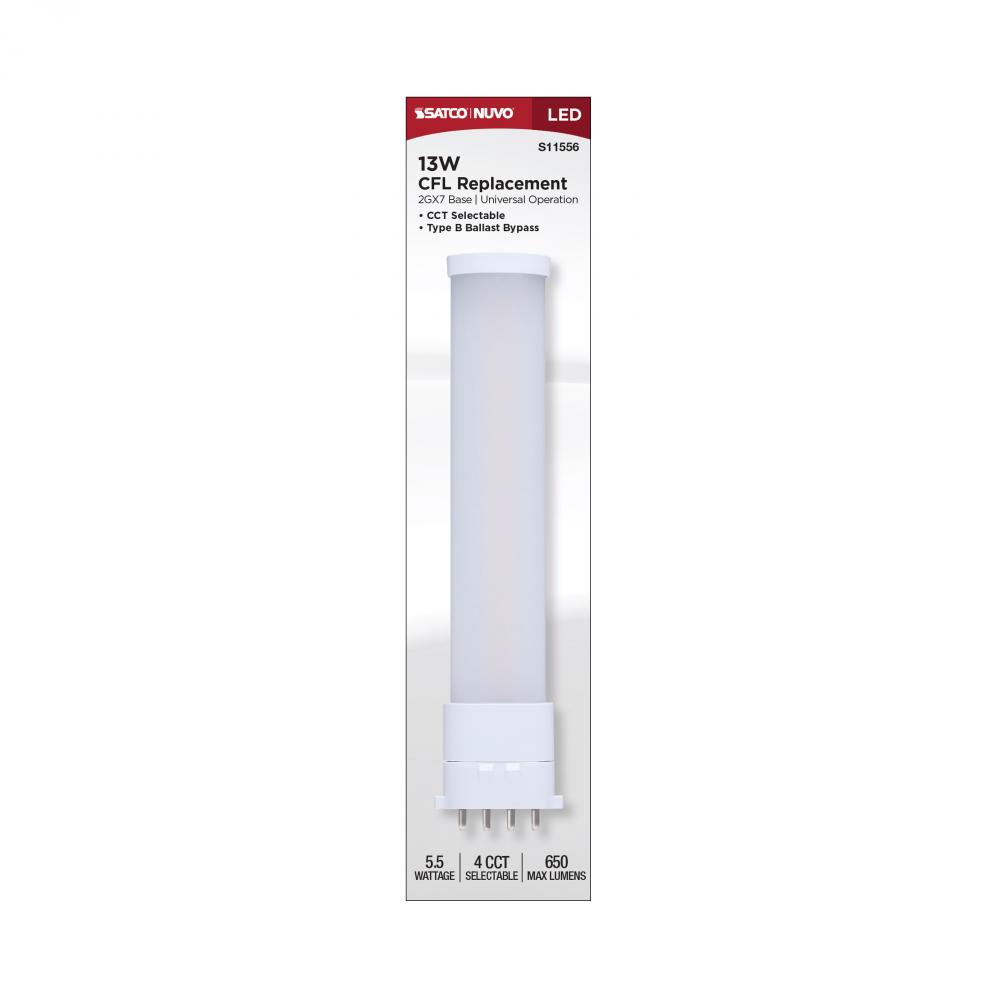

5.5 Watt; 2GX7 Base; 27K/30K/35K/40K CCT Selectable; Frost Finish; Ballast Bypass; 120-277 Volt
9
90
Pack Of: 1
5874 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification

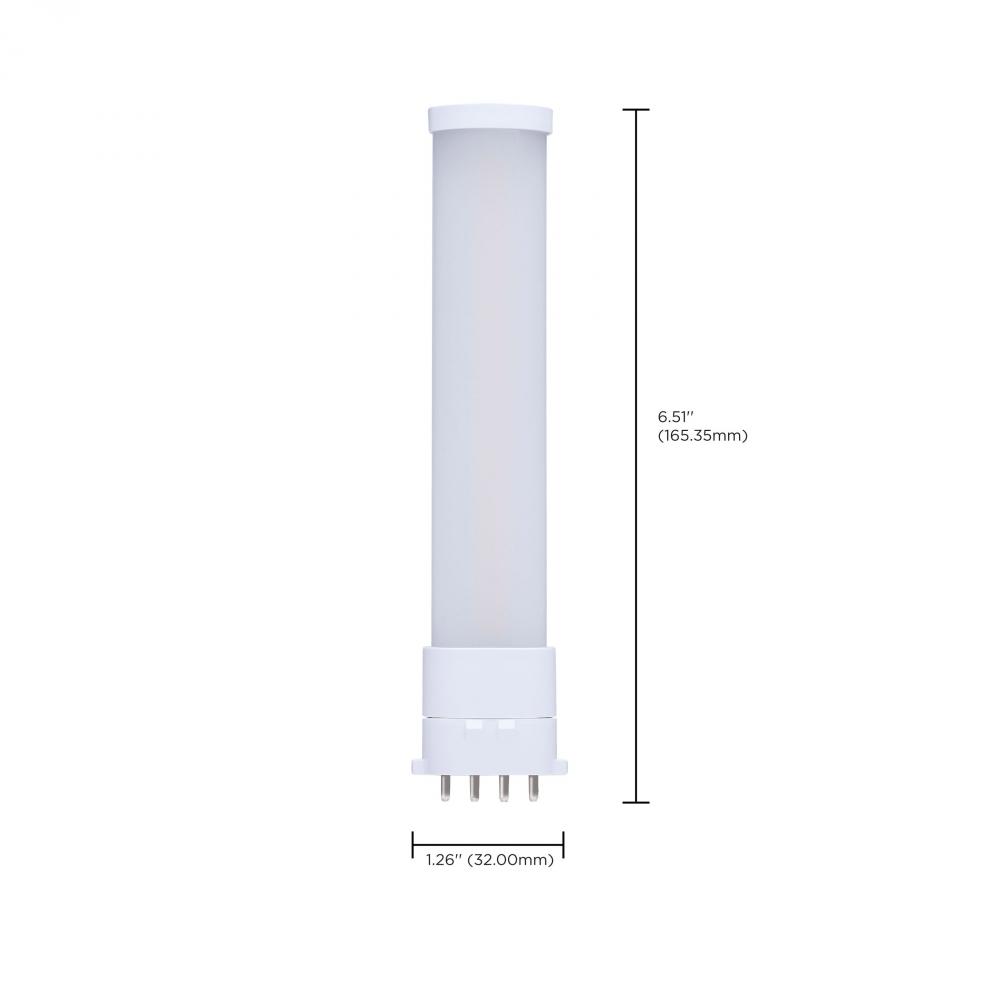

Dimensions
Width: 1.26"
Product Overview
5.5 Watt; 2GX7 Base; 27K/30K/35K/40K CCT Selectable; Frost Finish; Ballast Bypass; 120-277 Volt
Product Availability
-
Item appears to be in stock and ready to ship

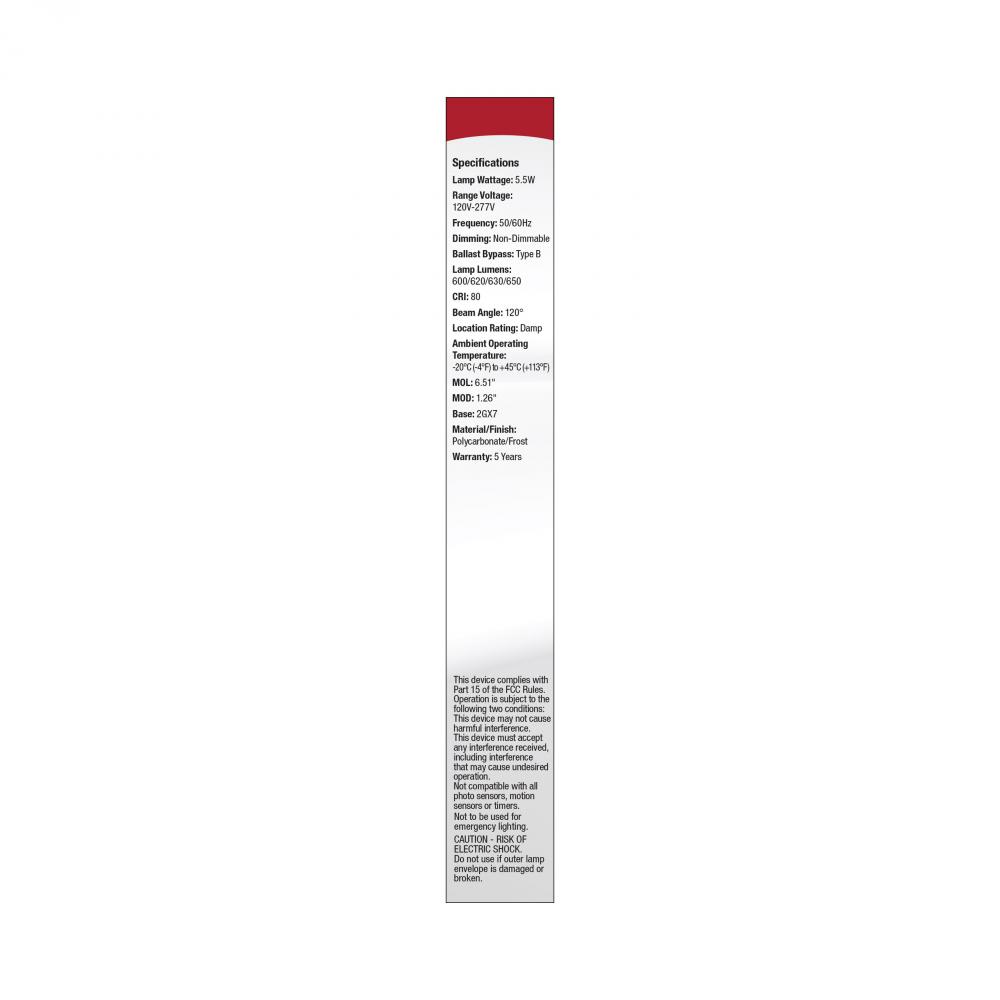

Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish Family:
Frost
Category:
LED
Sub-Category:
LED CFL Replacements Pin Based
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
2700K/3000K/3500K/4000K
Bulb Shape:
PL
Diameter:
1.26
EA Length:
1.54
Harmonized Codes:
8539.52.0091
Length:
6.51
Lumens:
600L/620L/630L/650L
Shap Carton Width:
0.91
Ship Carton Height:
6.61
Ship Weight:
0.1
Warranty:
5 Year Limited - 10 hr per day
Weight:
0.08
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
120
Bulb ANSI Base:
2GX7
Bulb Base:
2GX7 (4-Pin)
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0054
Cartons Per Unit:
1

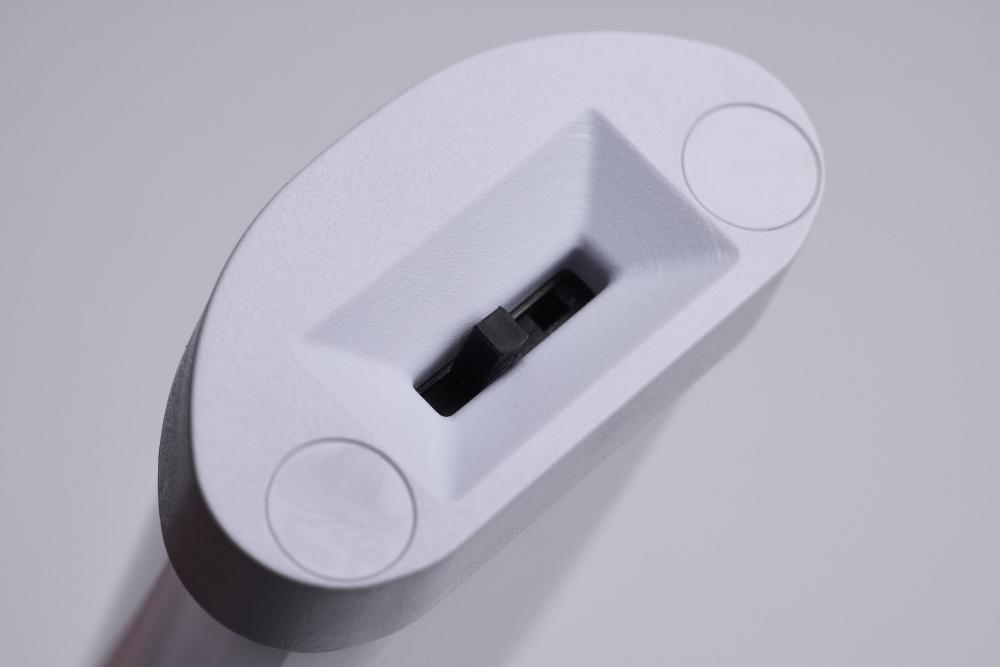

CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm to Cool White
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
109.09/112.73/114.55/118.18 LPW
Enclosed Fixture Use:
No
FCC Compliant:
Yes
Feature 1:
4 CCT Selectable
Feature 2:
Type B Ballast Bypass
Feature 3:
120 Degree Beam Spread
Feature 4:
2GX7 Lamp Base
Feature 5:
Damp Location Rated
Feature 6:
50,000 Hour Functional Life
Feature 7:
5 Year Warranty
Feature 8:
Single-Sided Illumination
Flourescent Equivalent:
13W
Housing Color:
White
Indoor Outdoor:
Indoor
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Location Rating:
Damp
Long Description:
The SATCO NUVO S11556 4.5W Type B LED lamp provides an efficient replacement for 5W, 7W, and 9W CFL lamps with a G23 base. With its ballast bypass design, this lamp connects directly to the electrical system, eliminating the need for a traditional ballast.
Material:
Polycarbonate (PC)
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
Upgrade your lighting with SATCO NUVO's energy-efficient Type B ballast bypass LED replacement lamps. These innovative lamps are available in multiple base options to suit your needs. The 3.5W model for 5/7/9W CFL lamps with a 2G7 base and the 5.5W mod
SDS class:
LED_Lamp
Short Description:
5.5W/LED/CFL/CCT/2GX7/BP
Style:
Transitional
Surge Protection:
Built-in-surge protection - 0.5KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
20%
Wattage Selectable:
No
Watts:
5.5W
