Item Sales Info
Part Number: S12136
/
Vendor ID Number: 27
/
Custom:

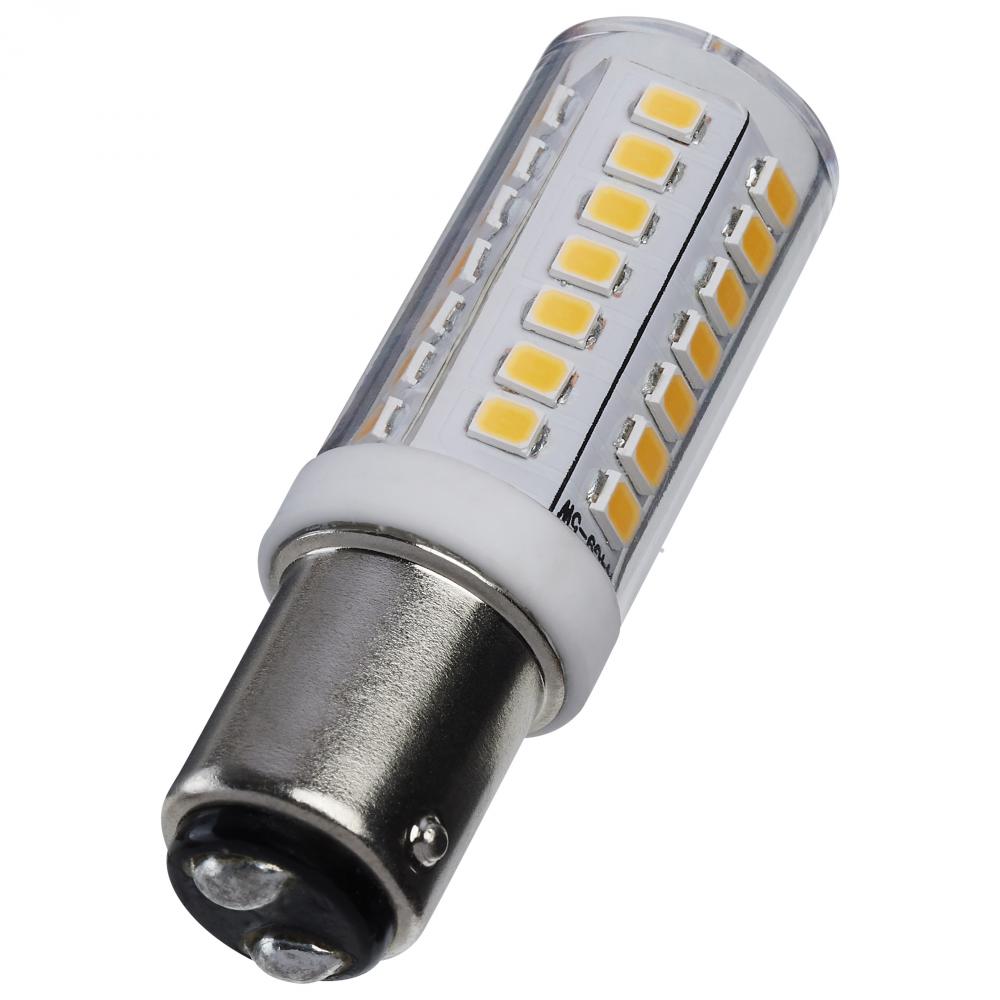

5 Watt Mini LED; Bayonet Double Contact Base; 3000K; Clear Finish; 120 Volt
9
90
Pack Of: 1
4097 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 0.75"
Product Overview
5 Watt Mini LED; Bayonet Double Contact Base; 3000K; Clear Finish; 120 Volt
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish Family:
Clear /vendors/vendorImages clear.jpg
Category:
LED
Sub-Category:
Mini and Pin-Based LED
Volts:
120V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
25000
Bulb Kelvin:
3000K
Bulb Shape:
T6
Diameter:
0.75
EA Length:
3.27
Harmonized Codes:
8539.52.0020
Length:
2.24
Lumens:
550L
Shap Carton Width:
0.75
Ship Carton Height:
4.84
Ship Weight:
0.09
Warranty:
3 Year Limited - Mini LED Pin Base
Weight:
0.05
Additional Info:
Housing Material: Ceramic; Lens Material: Polycarbonate (PC)
Beam Spread:
300
Bulb ANSI Base:
BA15d
Bulb Base:
Bayonet Double Contact
Bulb Finish:
Clear
Candle Power:
40
Carton Cubic Feet:
0.0069
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Soft White
Country Of Origin:
China
CRI:
80+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
120V only
Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable or Triac
DLC Approved:
No
Efficacy:
110.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
300 degree Omni-Directional Light
Feature 2:
Clear Lamp Finish
Feature 3:
3000K CCT
Feature 4:
Damp location rated
Feature 5:
T6, Double Contact Base
Feature 6:
Dimmable
Feature 7:
Enclosed fixture rated
Feature 8:
25,000 Life Hours
Housing Color:
White
Incandescent Equivalent:
40W
Indoor Outdoor:
Indoor
JA8 Compliant:
No
Lamp Filament:
LED
Location Rating:
Damp
Long Description:
SATCO NUVO's S12136 5-watt, BA15d double contact base, Halogen replacement bulb offers bright illumination while consuming minimal power. Designed for socket configurations commonly found in elevators, landscape lighting, and specialty lighting, this b
Material:
Ceramic / Polycarbonate (PC)
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Carded
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's Single and Double Contact LED Halogen Replacement bulbs offer bright illumination while consuming minimal power. Designed for socket configurations commonly found in elevators, landscape lighting, and specialty lighting, they incorporate L
SDS class:
LED_Lamp
Short Description:
5W/LED/DC/CL/830/120V/1CD
Style:
Utility
Surge Protection:
Built-in surge protection - 1.5KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
70%
Wattage Selectable:
No
Watts:
5W
