Item Sales Info
Part Number: 62/1803
/
Vendor ID Number: 81
/
Custom:
7 inch; LED Disk Light; 5-CCT Selectable 27K/3K/35K/4K/5K; Bronze Finish
17
99
Pack Of: 1
2782 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 1.42"
Width: 7.42"
Finish
Bronze
Product Overview

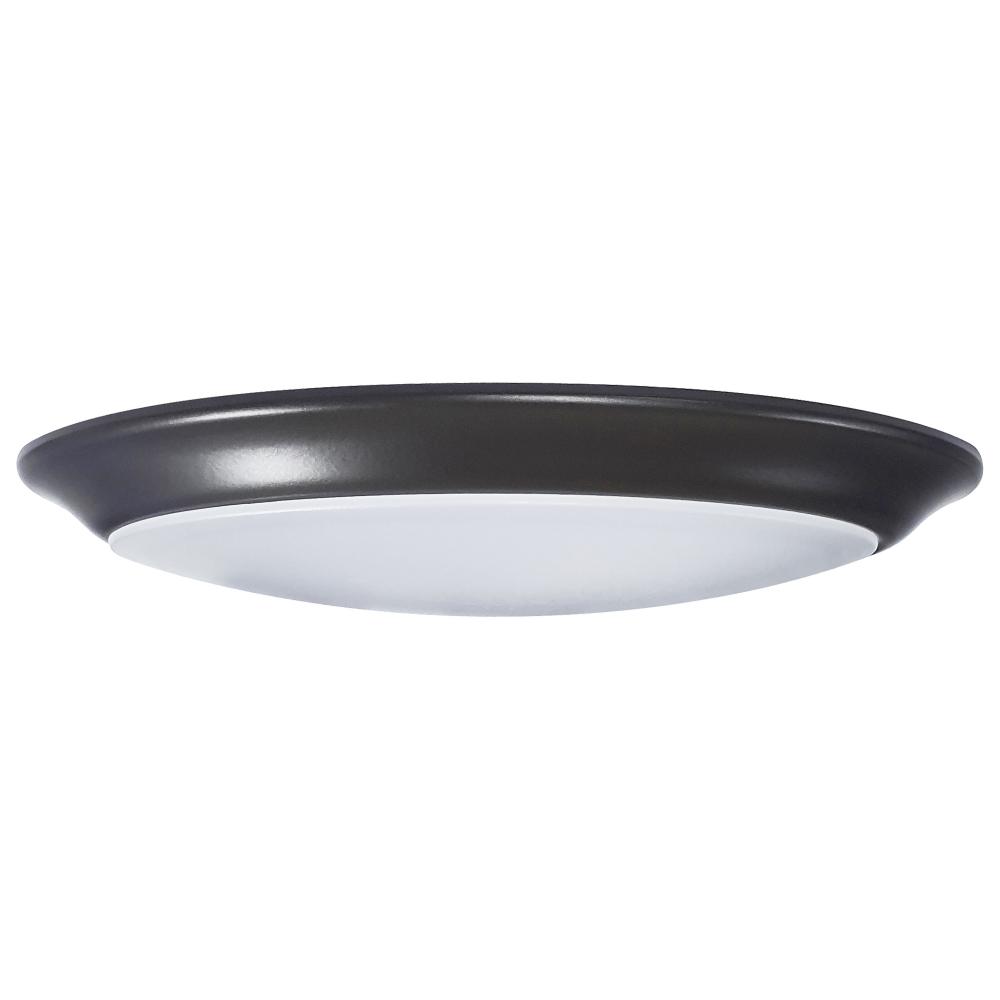

7 inch; LED Disk Light; 5-CCT Selectable 27K/3K/35K/4K/5K; Bronze Finish
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Flush Mounts
Subcategory:
Other Flush Mounts
Option:
Energy Star /vendors/vendorImages energy star.jpg
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
Bronze /vendors/vendorImages bronze.jpg
Category:
Close-to-Ceiling
Sub Category:
LED Disk
Style:
Contemporary
Bulb Volts1:
120V
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Diameter:
7.42
Dimmable:
Yes-Dimmable
Each Height:
7.63
Each Length:
7.63
Each Width:
1.69
Lumens:
780L-910L
Tariff Code:
9405.11.8020
Warranty:
5 Year Limited - Fixtures
Amps:
0.125A
BAA Compliant:
No
Beam Angle:
110
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Connection:
Hardwire
Country Of Origin:
Malaysia
CRI:
93
Dimmable Down To:
100 to 10 percent
Dimming Type:
Forward Phase or Reverse Phase
Each Cube:
0.0534
Each Quantity:
1
Efficacy:
52.00/56.33/60.67 lm/w
ES Category:
Other
ES Unique ID:
ESID-2507677
FCC Compliant:
Yes
Feature 1:
5 CCT Selectable
Feature 2:
Dimmable
Feature 3:
Wet Location Rated
Feature 4:
93 CRI
Feature 5:
Bronze
Feature 6:
Mounts to 3 inch and 4 inch Junction Boxes
Feature 7:
Dia: 7.42 inches x H: 1.42 inches
Feature 8:
Dia: 7.42 inches x H: 1.42 inches
Finish Family:
Bronze
Fixture shape:
Round
Has Driver:
No
Incandescent Equivalent:
60W
Indoor Outdoor:
Indoor
Installation Notes:
Keyhole Slots
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Finish:
White
Lens Material:
Acrylic
Long Description:
Introducing SATCO|NUVO's 62-1803 LED CCT Selectable Disk Light with ColorQuick technology! This 7-inch, 15-watt disk light in bronze features a high CRI of 93, 2.5kV surge protection, and wet location rating. This CCT Selectable Disk Light is rated for
Material:
Steel
Mounting Procedure:
Ceiling
NSF Approved:
No
Operating Frequency:
60Hz
Operating Temp:
-25C (-13F) to +40C (+104F)
Pack Type:
Color Box
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
58
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Introducing SATCO|NUVO's LED CCT Selectable Disk Lights with ColorQuick technology! Available in 7-inch and 10-inch sizes, these disk lights are perfectly suited for various spaces making them ideal for Multi-Family and Residential locations. These dis
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
7" LED DISK LIGHT BRONZE FINIS
Sloped Ceiling Compatible:
Yes
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
Yes
Wattage Selectable:
No
Weight Lb.:
0.58
